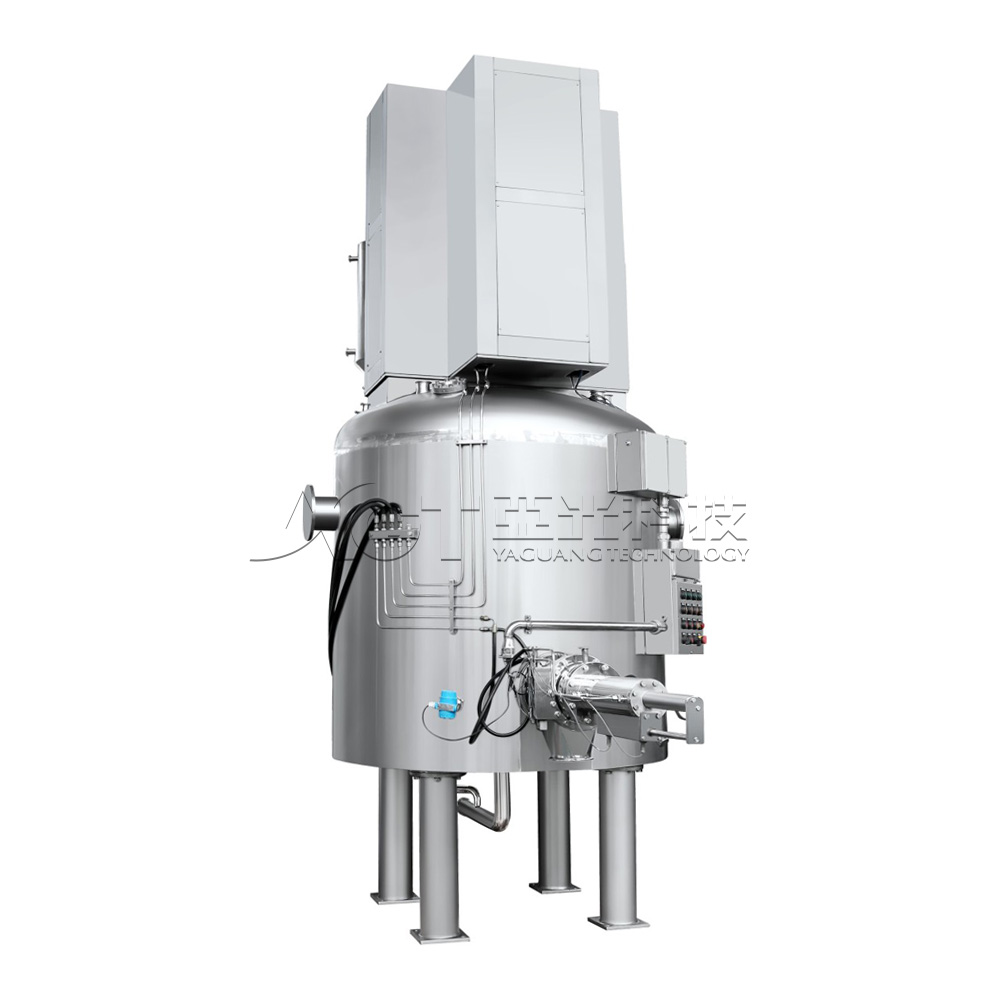

Agitated Nutsche Filter Dryer For Chemical Industry (ANFD)

Agitated Nutsche Filter Dryer For Chemical Industry (ANFD)

The chemical grade Agitated Nutsche Filter Dryer can be applied to the filtration washing and drying process of inorganic salts and chemical powders. It has the characteristics of high automation, good sealing, small space occupation, and low energy consumption. Also, this machine can replace the combination of traditional pressure filters, centrifuge, and drying machine.
GMP
complies with GMP standards
FDA
complies with FDA regulations

Functions

Under positive pressure or negative pressure, carrying out feeding, filtering, pulping and washing, filter cakes smoothing and drying, online sampling, powder scraping, automatic discharging, CIP.

Features

  • The whole process of filtering, washing and drying can be continuously carried out in the same vessel (it can continuously filter, wash and discharge without drying)
  • Sufficient washing of fitter cakes is with agitate, which has an outstanding effect.
  • Heating and drying of filter cakes with agitator.which has a fast drying speed.
  • Automatic discharging .avoiding pollution.
  • Provided with CIP function.
  • The whole operation process can be carried out with safety and reliability under the protection of nitrogen gas.
  • The botton cannot be removed. The filterplate is made of sectioned sintered mesh or filter cloth, which is Suitable far production of non- sterile API.
  • Compared with the traditional centrifugal machine and suction filtration vessel, it better conforms to GMP and FDA requirements.

Basic parameters

Model Filtering Area(㎡) Inside Diameter(mm) Nominal Volume(m³) Filter Cake Height(mm) Blade Lifting Height(mm) Motor Power(kw) Net Weight(kg) Total Height(mm)
DN1200 1 1200 1.28 250 300 7.5 4150 3850
DN1600 2 1600 2.8 300 350 11 5800 4400
DN2000 3 2000 4.9 350 400 18.5 8300 4600
DN2300 4 2300 6.4 350 400 22 10000 4600
DN2600 5.3 2600 8.8 450 500 30 12600 5100
DN2800 6 2800 11 450 500 30 14000 5300
DN3000 7 3000 12 500 550 30 18500 5750
DN3600 10 3600 18 500 550 45 26000 6000
