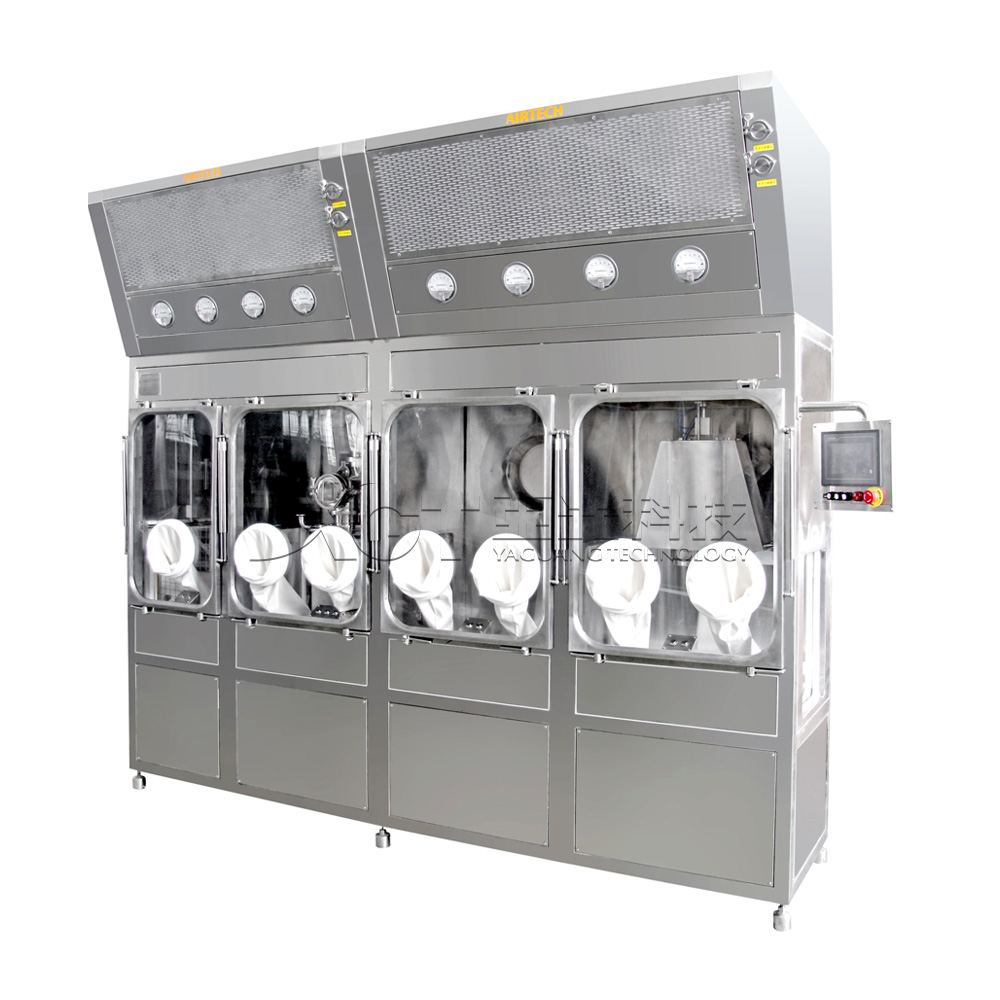

Split charging weighing capping system

Characteristics

• The transfer methods of API powder include the vacuum pipeline transfer, enclosed barrel transfer and sterile sealing bag transfer.
• The split-charging feeding methods of API powder include screw conveying and linear vibrator feeding.
• The discharge port of feeding device is equipped with the most advanced dust collector, which could reduce the environmental contamination in the split-charging area.
• The structure of capping device is much simpler, which reduces the negative influence on the capping area and effectively prevents the aluminum pins falling down during the process of capping.
• The system meets the requirements of the GMP 2010 edition of China, EU-GMP and FDA.

Working Principle

The system is applicable for the high precision split-charging and sealed capping of the API in the totally-enclosed laminar flow environment. Split-charging device discharges by docking the lifting device with weighing module and discharge port of feeding device. The discharge port of feeding device is equipped with a dust collector, which could reduce the environmental contamination in the split-charging area. The capping device caps aluminum bottles with the principle of full-automatic spring contraction. The whole process adopts the PLC closed-loop control of electronic control system so that the system could automatically split-charge, weigh and cap accurately.
